PCB Support 10.0 | ø3.2 | ø3.2 Polyamide 6.6 natural

PCB Support 10.0 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.31.106

From €51.00 * / 500 PCS

Available immediately

Products you’ll want to snap up! ETTINGER Circuit Board Supports

Plastic circuit board supports are fasteners that are frequently used in the electronics industry as a quick and easy way of connecting two circuit boards. They can also be used to connect metal sheets or plastic plates with the same dimensions.

The catching mechanisms can be pushed together, allowing the circuit board support to be installed and removed without any tools. There’s also no need for any other installation components, like screws, washers, or nuts.

ETTINGER circuit board supports are available in many other dimensions too, of course:

ETTINGER item number	Distance A
006.30.036	3.2 mm
006.30.046	4.8 mm
006.30.066	6.4 mm
006.30.076	7.9 mm
006.30.096	9.5 mm
006.31.106	10.0 mm
006.30.116	11.1 mm
006.30.126	12.7 mm
006.30.146	14.3 mm
006.30.156	15.9 mm
006.30.176	17.5 mm
006.30.196	19.1 mm
006.30.226	22.2 mm
006.30.286	28.6 mm
006.30.316	31.8 mm
006.30.346	34.9 mm
006.30.386	38.1 mm

Can’t find the dimension you need? Get in touch with our team of experts.

Product advantages

Releasable fastening
No need for tools during installation/removal
Temperature range: -40°C to +85°C
Flammability class: UL94-V2
With catching and snapping mechanism
Miniature version

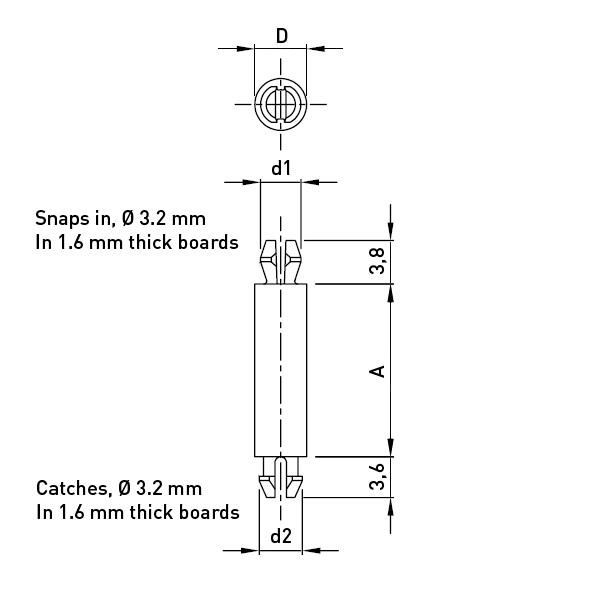

Technical details

Material: Polyamide 6.6, natural
Circuit board thickness: 1.6 mm
Carrier board thickness: 1.6 mm
Snap-in hole Ø 3.2 mm
Catch hole Ø 3.2 mm

Order the right circuit board supports with snapping mechanisms for your next project directly here

We would be delighted to help you find the right product for your project. Send us an e-mail!

Can’t find what you’re looking for?

Order the right circuit board supports with snapping mechanisms for your next project directly here:

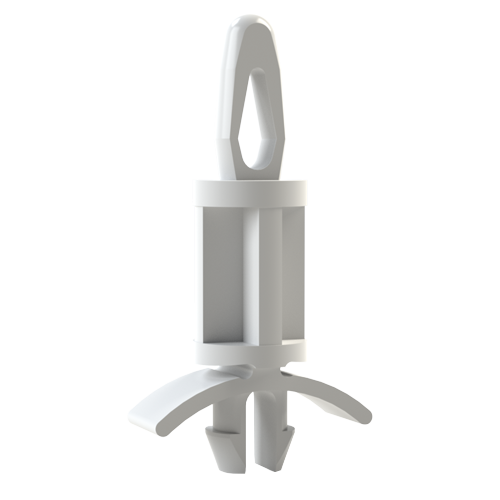

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.01.046

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.01.046

From €17.40 * / 100 PCS

Available immediately

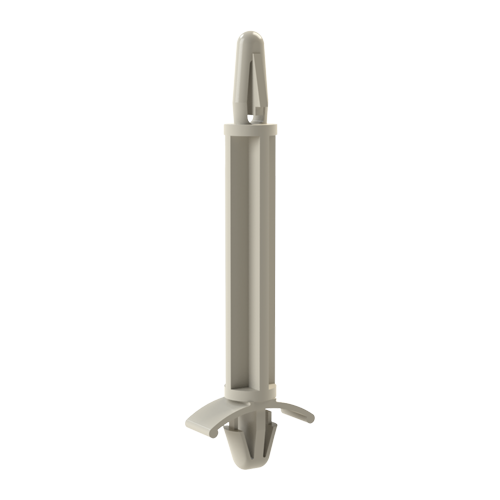

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.02.046

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.02.046

From €30.00 * / 500 PCS

Available immediately

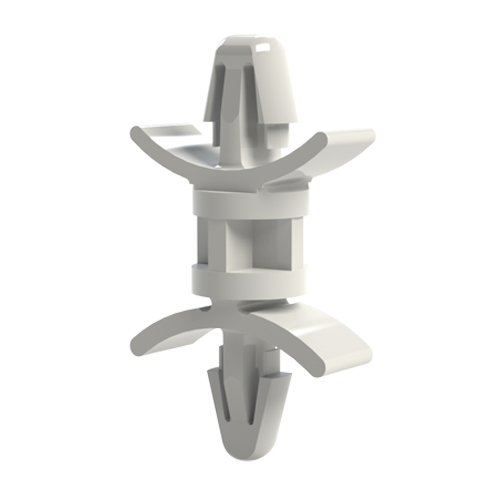

PCB Support 6.4 | ø4.0 | ø4.0 Polyamide 6.6 natural

Article-No.: 006.03.116

PCB Support 6.4 | ø4.0 | ø4.0 Polyamide 6.6 natural

Article-No.: 006.03.116

From €12.00 * / 100 PCS

Available immediately

PCB Support 14.3 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.03.466

PCB Support 14.3 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.03.466

From €19.30 * / 100 PCS

Available immediately

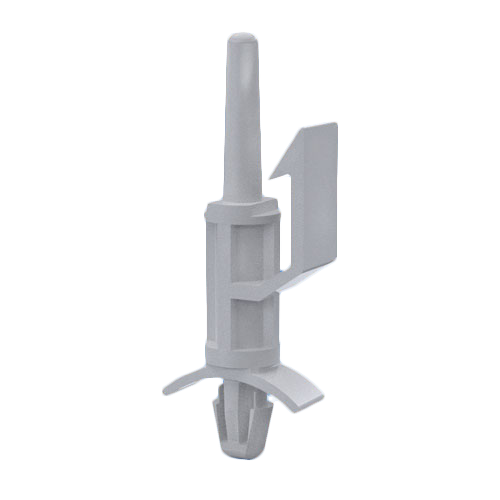

PCB Support 15.9 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.06.346

PCB Support 15.9 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.06.346

From €229.00 * / 1000 PCS

Available in 40 days

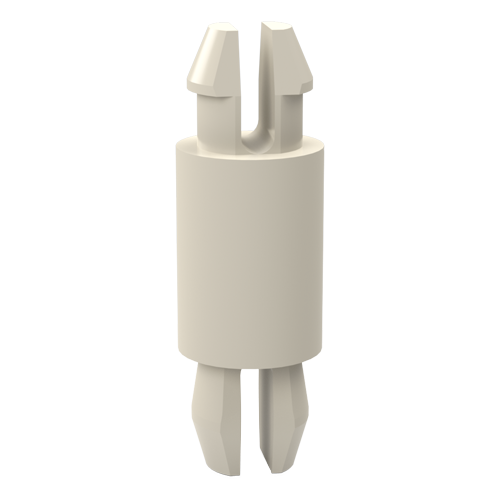

PCB Support 6.4 | ø3.9 | ø3.9 Polyamide 6.6 natural

Article-No.: 006.09.066

PCB Support 6.4 | ø3.9 | ø3.9 Polyamide 6.6 natural

Article-No.: 006.09.066

From €18.60 * / 100 PCS

Available immediately

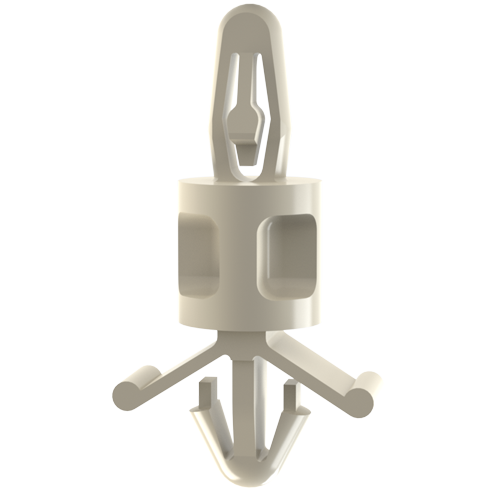

PCB Support 9.5 | ø4.0 | ø4.7 Polyamide 6.6 natural

Article-No.: 006.20.096

PCB Support 9.5 | ø4.0 | ø4.7 Polyamide 6.6 natural

Article-No.: 006.20.096

From €6.95 * / 100 PCS

Available immediately

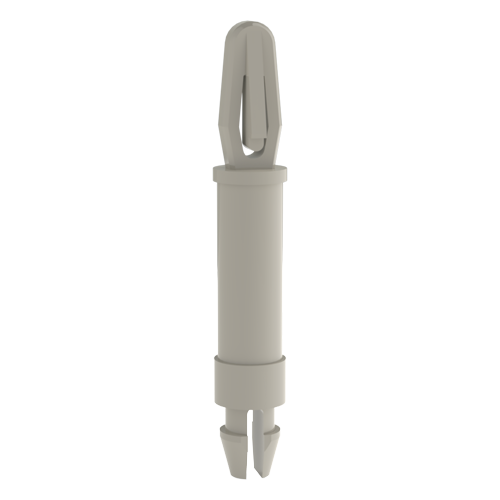

PCB Support 22.2 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.23.226

PCB Support 22.2 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.23.226

From €19.80 * / 100 PCS

Available immediately
