Set Screws

ETTINGER stocks set screws with different profiles for almost every application: Set screws are not only used in the field of mechanical engineering to secure gears or shafts, but also to adjust measuring instruments, among other things. In daily life, set screws are found in door handles, for example.

• Set screws with a flat point: are a flexible option as they can be moved or readjusted at any time after use. Accordingly, they are predominantly used in parts of devices that require subsequent adjustment, whereby the set screw can be repeatedly tightened or loosened as needed. Set screws with a flat point are gentler on the material compared to grub screws with a cup point. Although they don't provide as strong a grip as the cup-point version, they are ideal for assembly work on delicate materials and surfaces that need to be protected from scratches.
• Set screws with a cone point: offer particularly good clamping properties. A taper countersink must be pre-drilled so that the set screw can be inserted. Subsequent adjustment is not possible.
• Set screws with a cup point: do not require a pilot hole (unlike set screws with a cone point) because they cut their own path into the material. Set screws with a cup point are characterized by a secure and tight fit. They are ideal for preventing two attached workpieces from twisting against each other. For a secure connection, worm screws with a cup point should always be screwed completely into a corresponding mating thread.
• Set screws with a dog point: are used in situations where transverse forces will act on the thread, which would otherwise cause the threads to gradually flatten out as the screw is rotated into the groove. Without a dog point, it will no longer be possible to turn the set screw at all after a certain point. When using set screws with dog points, a pre-drilled hole is required into which the worm screw can be driven.

• Set screw with hexagon socket and flat point
• Set screw with hexagon socket and cup point
• Set screw with hexagon socket and cone point
• Set screw with hexagon socket and dog point

In the ETTINGER product range you will find set screws with various combinations of profiles and drives.

• Set screw with slot and cup point
• Set screw with slot and flat point
• Set screw with slot and cone point
• Set screw with hexagon socket and dog point
• Set screw with hexagon socket and flat point
• Set screw with hexagon socket and cup point
• Set screw with hexagon socket and cone point

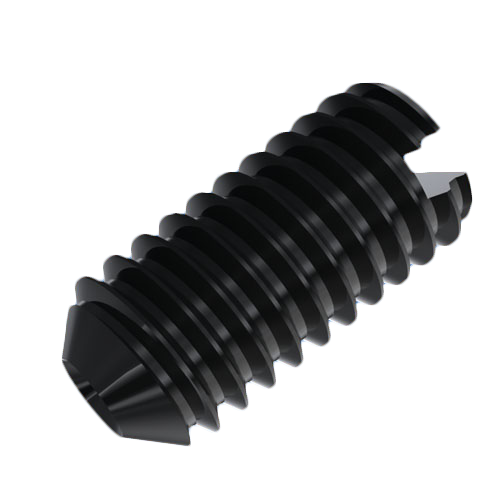

Set screws with slot and cup point

Our set screws with slot and cup point  comply with the DIN 438 or ISO 7436 standard.

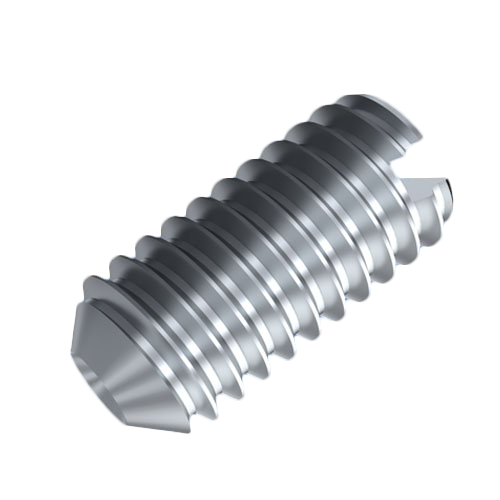

Set screws with slot and flat point

Set screws with a slot and flat point  can be found in ETTINGER's online store under the DIN 551 and ISO 4766 standards.

Set screws with slot and cone point

The ETTINGER range includes a wide selection of set screws with slot and cone point. These comply with the DIN 553 and ISO 7434 standards and are available in blue galvanized 4.8 steel as standard.

Set screws with hexagon socket and dog point

Our set screws with hexagon socket and dog point  comply with the DIN 915 or ISO 4028 standard. This type of grub screw is ideal for fastening through-holes – for example, in fittings.

Set screws with hexagon socket and flat point

Set screws with a hexagon socket as the drive and a flat point  as the profile comply with the national DIN 913 standard or the international ISO 4026 standard. ETTINGER stocks worm screws that meet these standards in different materials such as steel and stainless steel.

Set screws with hexagon socket and cup point

ETTINGER offers DIN 916 and ISO 4029 set screws with a hexagon socket and cup point  in many different dimensions.

Set screws with hexagon socket and cone point

Set screws with hexagon socket and cone point  are available in numerous designs and different materials – including steel 4.8, stainless steel or steel 45H – in the ETTINGER online store under the DIN 914 and ISO 4027 standard.

Set screws in various thread sizes in the ETTINGER online store

In addition to different drive types and profiles, the ETTINGER product range includes set screws in the following thread sizes to suit your project:

• Set screw M4
• Set screw M5
• Set screw M6
• Set screw M8
• Set screw M10

Can't find the right thread size, or do you have a special request? That's no problem for ETTINGER! Just ask us!
