Pan head screws
– purchase online directly from the manufacturer as a commercial customer
HIGH AVAILABILITY
Pan head screws are available from stock right now at ETTINGER and can be supplied in large quantities. With a storage area of over 3,000 m², we have 160 million parts available for you at all times.
TOP QUALITY
BOur fasteners are made at our in-house production facilities in Germany and our quality management system is certified in accordance with DIN EN ISO 9001:2015.
LARGE SELECTION
We offer pan head screws in different materials, lengths, and threads to suit different applications.
Traditional applications for pan head screws
Pan head screws lie flat on the processed workpiece or component and thus add very little extra bulk. As a result, they are often preferred as a fastening solution for aesthetic reasons. Pan head screws also offer additional safety – their special shape prevents damage to the screw head as well as injuries. Furthermore, pan head screws are very gentle on the workpiece.
Depending on the application, the following pan head screws are available in the ETTINGER product range:
- Pan head screws with slot,

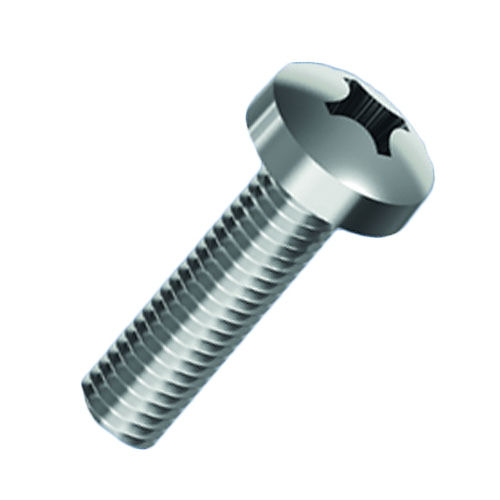

- Pan head screws with cross slot (Phillips-H, Pozidriv-Z),
- Pan head screws with flange,
- Pan head screws with seal

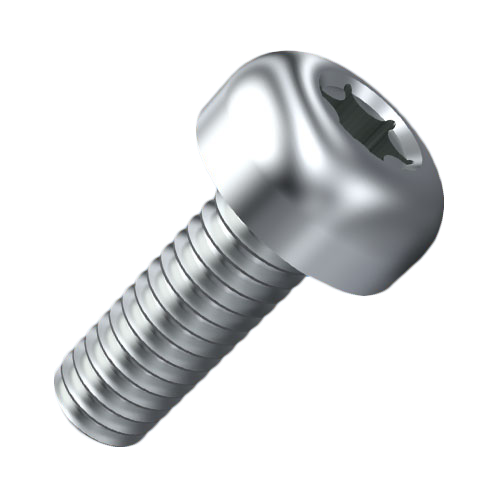

- Pan head screws with Torx,
- Self-tapping pan head screws which cut their own thread when screwed into the workpiece. ETTINGER stocks these variants as well as many other kinds of self-tapping screws.
Pan head screws in the ETTINGER product range
ISO 7045 (DIN 7985) pan head screws are frequently in demand in the B2B wholesale segment. Accordingly, ETTINGER stocks a large range of ISO 7045 pan head screws. In addition, ETTINGER can supply pan head screws that meet various other DIN and ISO standards, such as ISO 7380 pan head screws with hexagon socket.
The ETTINGER product range includes the right pan head screw for every requirement:
- Steel pan head screws:
These screws are characterized by their high strength. On the other hand, if corrosion resistance is important, stainless steel pan head screws are the best choice.
- Stainless steel pan head screws:
Stainless steel is rustproof and therefore ideal if the processed workpiece and the screw itself will be exposed to corrosive environments.
- Brass pan head screws
Brass pan head screws are an interesting alternative to stainless steel screws for certain applications, as they also offer very good corrosion protection. In addition, they excel at conducting electricity while maintaining low thermal conductivity.
The different thread sizes offer further variation options when selecting the appropriate pan head screw. At ETTINGER you will find the following variants, among others:
Our most popular pan head screws (also known as flat head screws)
Available immediately
Available in 73 days
Available immediately
Available immediately
You will find pan head screws in the ETTINGER product range in the following categories, among others:
- Sheet metal screws with pan head to DIN 7981 / ISO 7049 in shape C (with point) or shape F (without point)
- Self-tapping screws with pan head create their own female thread when screwed into the workpiece. This can reduce tooling and assembly costs.

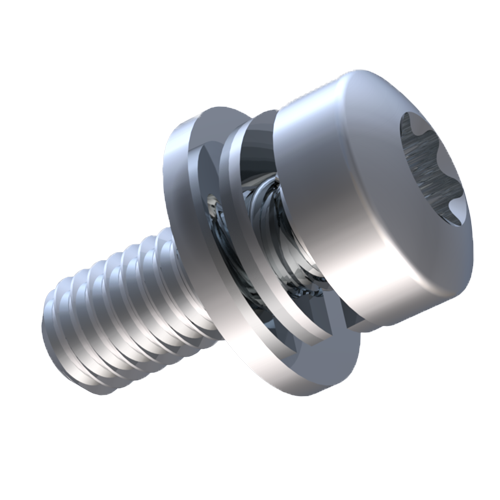

- SEMS screws with pan head include a captive flat washer, lock washer or spring washer. This can speed up the assembly process and reduce the error rate.
- UNC bolts with a standard American coarse thread are also available with a pan head and are commonly used in computer components.
Frequently asked questions about ETTINGER pan head screws
ETTINGER carries pan head screws with the thread sizes M2, M3, M4, M5, M6, M7, M8, M10, M12 as well as other sizes. The capital letter "M" stands for "metric thread".

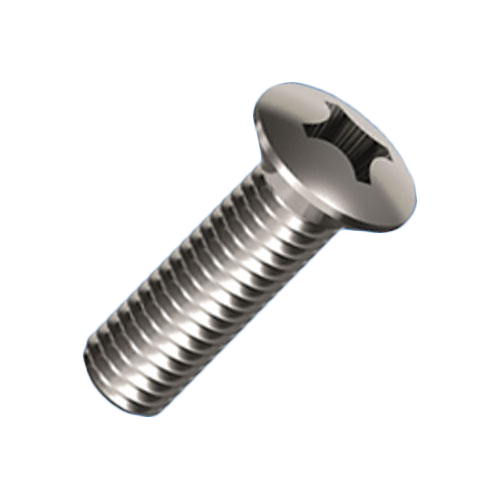

In fastening technology, the terms "pan head screw" and "flat head screw" are often used interchangeably – this is also the case at ETTINGER. While flat head or pan head screws lie flat on the workpiece, countersunk screws are recessed into it and therefore lie almost perfectly flush with its surface. To make this possible, the screw head is tapered like a funnel.
As an alternative to pan head screws made of traditional steel you can choose stainless steel or brass pan head screws.
Brass offers both excellent chemical corrosion properties and excellent electrical conductivity.
Yes, you can also request samples of pan head screws and other products from ETTINGER. Simply use the "Request product sample" form – you can access this directly from every product page via the "Request sample" link.
Do you need a special pan head screw that differs from our standard range? Then just ask us, we’re always happy to help!
Quality from ETTINGER – your requirements are our mission
For over 60 years we have been supplying pan head screws and many other standard parts conforming to DIN, ISO, and other common standards. Our high quality standards for metal and plastic fasteners are achieved thanks to our qualified staff, rigorous goods-in inspections and innovative technologies.
Here at ETTINGER, we prefer to manufacture and procure our products in Germany. To provide you with the best possible quality, we maintain long-standing and reliable business partnerships with our suppliers, who we regard as strong partners at our side. Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
