Rivets
019.87.093
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.00*
/
500
PCS
|
from 500 |
Available immediately
019.78.655
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.55*
/
100
PCS
|
from 100 |
Available immediately
072.21.459
Available immediately
| Unit price | Quantity |
|---|---|
|
€14.50*
/
100
PCS
|
from 100 |
Available immediately
019.84.055
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.30*
/
100
PCS
|
from 100 |
Available immediately
019.73.079
Available immediately
| Unit price | Quantity |
|---|---|
|
€31.25*
/
500
PCS
|
from 500 |
Available immediately
072.29.340
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.90*
/
100
PCS
|
from 100 |
Available immediately
072.21.370
Available immediately
| Unit price | Quantity |
|---|---|
|
€14.20*
/
100
PCS
|
from 100 |
Available immediately
072.14.460
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.15*
/
100
PCS
|
from 100 |
Available immediately
072.21.450
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.65*
/
100
PCS
|
from 100 |
Available immediately
019.77.090
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.85*
/
100
PCS
|
from 100 |
Available immediately
072.13.569
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.70*
/
100
PCS
|
from 500 |
Available immediately
072.13.660
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.80*
/
100
PCS
|
from 100 |
Available immediately
072.21.470
Available immediately
| Unit price | Quantity |
|---|---|
|
€17.20*
/
100
PCS
|
from 100 |
Available immediately
072.21.230
Available immediately
| Unit price | Quantity |
|---|---|
|
€79.00*
/
500
PCS
|
from 100 |
Available immediately
019.73.069
Available immediately
| Unit price | Quantity |
|---|---|
|
€36.50*
/
500
PCS
|
from 500 |
Available immediately
019.87.095
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.15*
/
100
PCS
|
from 100 |
Available immediately
072.11.860
Available immediately
| Unit price | Quantity |
|---|---|
|
€58.50*
/
500
PCS
|
from 500 |
Available immediately
019.77.063
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.20*
/
100
PCS
|
from 500 |
Available immediately
019.89.029
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.95*
/
100
PCS
|
from 500 |
Available immediately
072.13.691
Available immediately
| Unit price | Quantity |
|---|---|
|
€15.50*
/
100
PCS
|
from 100 |
Available immediately
072.21.380
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.70*
/
100
PCS
|
from 100 |
Available immediately
019.72.103
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.60*
/
100
PCS
|
from 100 |
Available immediately
072.21.121
Available immediately
| Unit price | Quantity |
|---|---|
|
€22.70*
/
100
PCS
|
from 100 |
Available immediately
019.73.045
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.60*
/
100
PCS
|
from 100 |
Available immediately
Rivets are cylindrical fasteners made of metal or plastic with a pre-formed head at one end (the “factory head”). They are ductile and mainly used to connect flat materials such as printed circuit boards and sheet metal.
Their main advantage compared to screws? None of the components being connected need a thread. They simply require a punched or drilled hole that is slightly bigger than the rivet itself. The rivet is pushed through the hole and the pressure then forms a head – known as the “shop head” or “buck tail”. Depending on the size of the rivet and the pressure required, this process can be done using a hammer, a specific rivet tool or a hydraulic press.
Form-fit rivet joints between components are secure and permanent. Drive rivets, or expanding style push-in rivets, are particularly suitable for efficient and cost-effective series production in equipment manufacturing because they are low weight and quick to install. They are, therefore, primarily used in lightweight constructions such as in aircraft manufacturing and shipbuilding and, of course, in the electronics industry. At ETTINGER, you can find rivets in a variety of designs and in large quantities online.
Rivets with a diameter of more than 8mm are hammered whilst hot. This means that they are heated in a forge to a yellow heat (1100°C) and then hammered while still glowing hot. As the metal bolt cools down, it contracts and joins the two components together. Accordingly, a distinction is made between hot rivet and cold rivet connections. Rivets with different head shapes are used depending on the application.
Extensive rivet product range
In the ETTINGER online shop you can find a large selection of standard rivets. We are also able to supply rivets with custom dimensions on request against a minimum order quantity. Our standard range includes the following products:

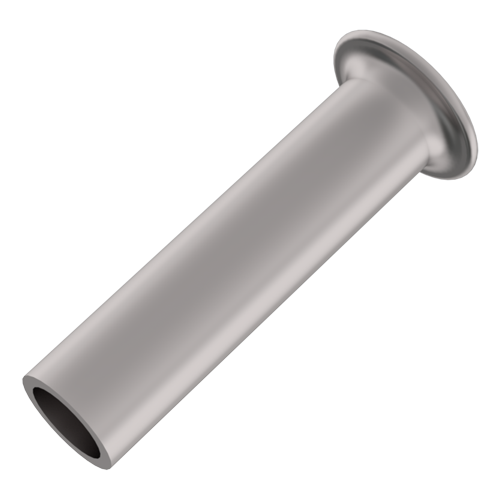

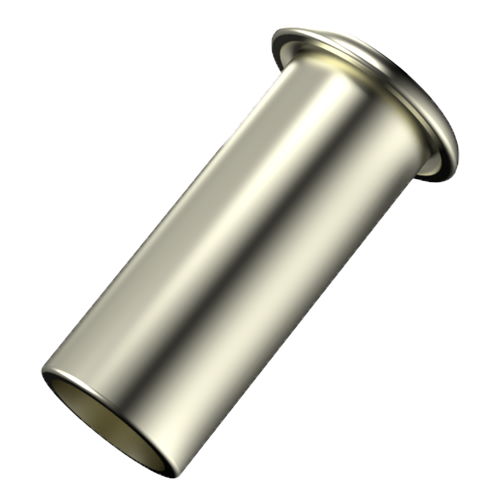

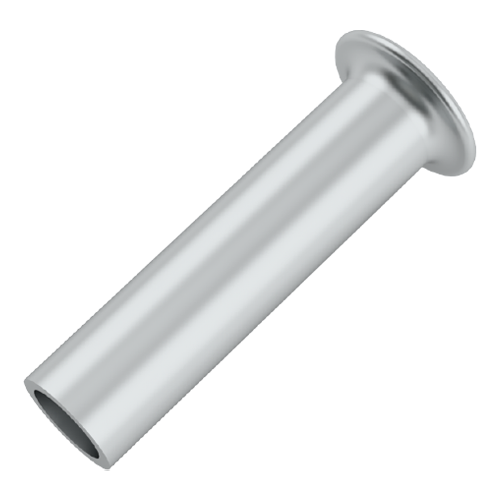

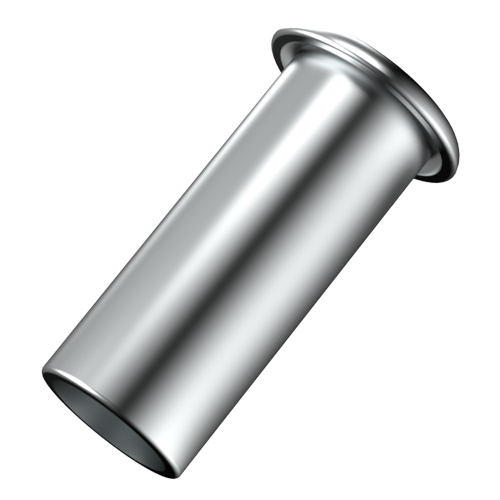

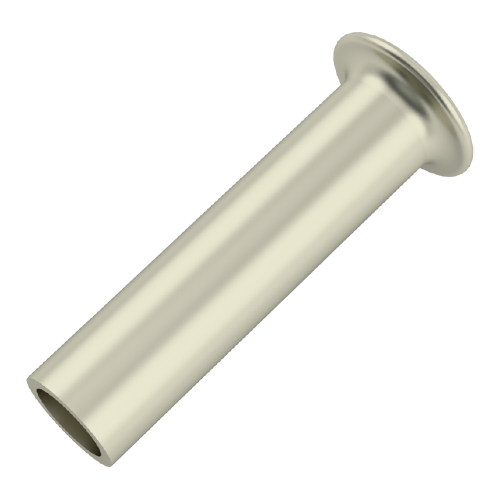

DIN 7340 tubular rivets
Our standard tubular rivets to DIN 7340 are manufactured from seamless, drawn precision tubes and therefore have a cylindrical shank with a constant wall thickness. We offer two different types of tubular rivets: type A with a flat head and type B head with rollers. Discover more here about our standard tubular rivets to DIN 7340.
Do you need a customized version of our DIN 7340 tubular rivets? Then please don't hesitate to contact us for further information regarding minimum orders and delivery times.

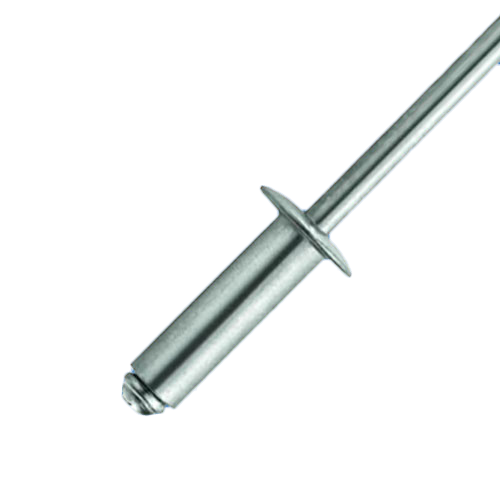

Blind rivets
In the electronic and electrical engineering sectors, blind rivets are used to permanently connect larger components such as connectors, terminal strips, power plugs, etc. together without distortion or surface damage. Blind rivets are available from ETTINGER in various materials to suit the material of the components that are being connected and the required load capacity. Find out about our blind rivets.

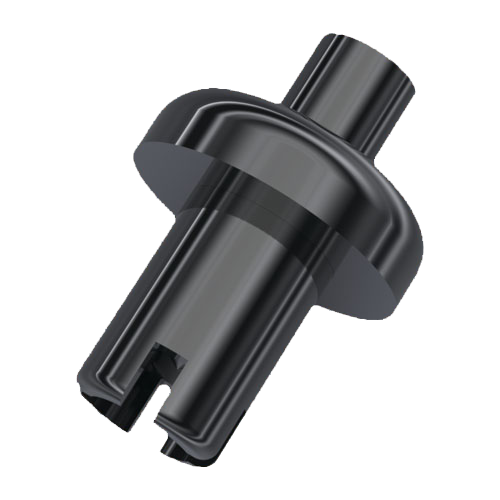

Push rivets
Push rivets are ideal for efficient assembly in series production and for use in equipment manufacturing because they can be used to permanently join components to a structure.
The heavy-duty plastic used by ETTINGER to manufacture push rivets is thermally and electrically insulating and corrosion resistant. Discover more here about rivets from ETTINGER.
Rivet designs available immediately from ETTINGER:
- Tubular rivets to DIN 7340, type A (flat head) or type B (head with rollers)
- Blind rivets, type A with flat head and break mandrel
- Push rivets, particularly suited to the electronics and equipment manufacturing industries
- Compatible, specially designed press-fit insertion or installation tools for quick assembly.
Would you like more information, free samples or a non-binding quote? Then contact us! We are also happy to advise you on large-scale custom production.
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
