Combination Nuts
002.29.631
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.60*
/
100
PCS
|
from 100 |
Available immediately
002.09.113
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.20*
/
100
PCS
|
from 100 |
Available immediately
002.09.114
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.80*
/
100
PCS
|
from 100 |
Available immediately
002.29.641
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.30*
/
100
PCS
|
from 100 |
Available immediately
002.09.218
Available immediately
| Unit price | Quantity |
|---|---|
|
€21.50*
/
100
PCS
|
from 100 |
Available immediately
002.09.214
Available immediately
| Unit price | Quantity |
|---|---|
|
€28.90*
/
100
PCS
|
from 100 |
Available immediately
002.09.117
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.20*
/
100
PCS
|
from 100 |
Available immediately
002.29.661
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.45*
/
100
PCS
|
from 100 |
Available immediately
002.09.116
Available immediately
| Unit price | Quantity |
|---|---|
|
€28.40*
/
100
PCS
|
from 100 |
Available immediately
002.29.651
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.20*
/
100
PCS
|
from 100 |
Available immediately
002.09.115
Available immediately
| Unit price | Quantity |
|---|---|
|
€11.30*
/
100
PCS
|
from 100 |
Available immediately
002.09.118
Available immediately
| Unit price | Quantity |
|---|---|
|
€34.60*
/
100
PCS
|
from 100 |
Available immediately
002.09.215
Available immediately
| Unit price | Quantity |
|---|---|
|
€82.00*
/
100
PCS
|
from 100 |
Available immediately
002.09.119
Available immediately
| Unit price | Quantity |
|---|---|
|
€18.80*
/
100
PCS
|
from 100 |
Available immediately
002.29.681
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.90*
/
100
PCS
|
from 100 |
Available immediately
002.29.741
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.75*
/
100
PCS
|
from 100 |
Available immediately
002.09.216
Available in 15 days
| Unit price | Quantity |
|---|---|
|
€2,660.00*
/
5000
PCS
|
from 100 |
Available in 15 days
002.09.128
Available in 10 days
| Unit price | Quantity |
|---|---|
|
€132.00*
/
500
PCS
|
from 100 |
Available in 10 days
What is a combination nut and what are its advantages?
Nuts with integrated washers offer numerous advantages in the areas of assembly, inventory management, and process reliability:
- Since the washer is permanently attached to the nut, it cannot be lost or forgotten during installation.
- This simplifies both manual and automated assembly processes.
- Inventory management is streamlined: Instead of stocking two separate components, only one fastening element is needed.
- The larger surface area of the washer ensures even load distribution, stabilizing the connection even under dynamic loads.
- Additionally, the washer protects the material surface from damage.
The ETTINGER B2B online store offers nuts with washers in three different variants.

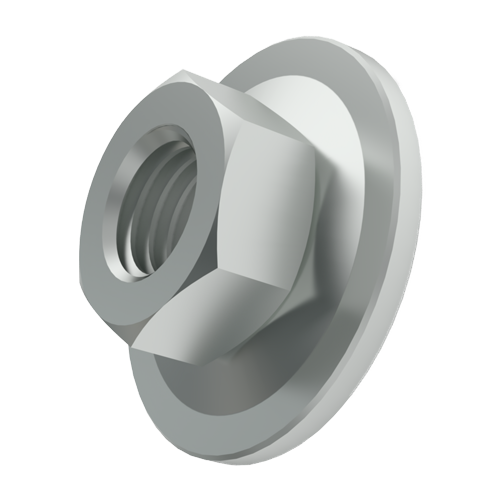

Combination nuts with rotating washer
This type of nut features a movable, smooth washer. The rotating washer increases friction between the nut and the workpiece, increasing the clamping force and allowing for easier adjustment of the connection. Spring steel washers generate additional spring forces after pretensioning.
Nuts with a rotatable washer are ideal for vibration-resistant screw connections and are available in the following specifications in ETTINGER's standard range:
- Material: galvanized steel, A2 stainless steel
- Thread: M3 to M6, M8
- Width across flats: 5.5, 7, 8, 10, 13

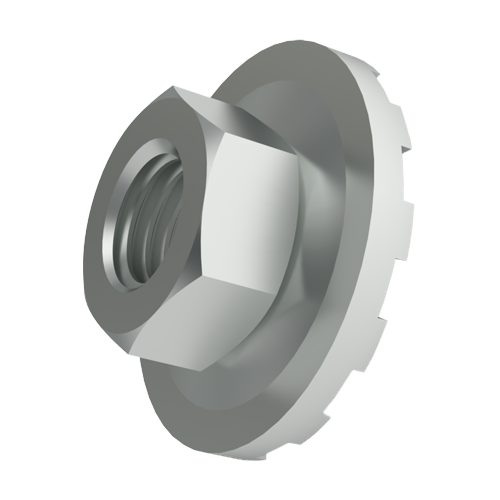

Combination nuts with spring-loaded toothed lock washer
In this combination nut, the teeth of the rotating spring-loaded toothed lock washer dig into the material, providing additional fixation of the components and establishing a contacting connection. This type of contact fastening is particularly common in electronics manufacturing.
You can purchase combination nuts with a spring-loaded toothed lock washer in the following variants:
- Material: galvanized steel, A2 stainless steel
- Thread: M4 to M6, M8
- Width across flats: 7, 8, 10, 13
We also offer hexagon serrated flange nuts to DIN 6923 for secure ground contact.

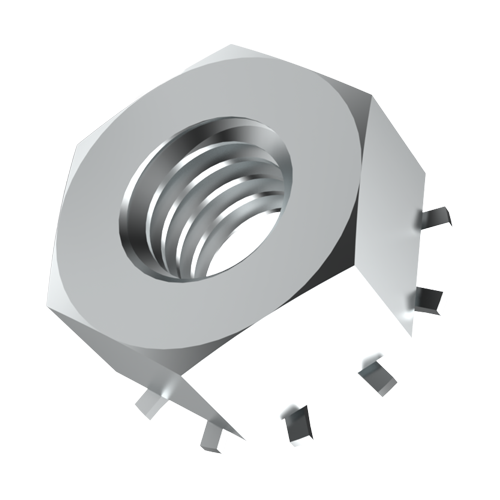

Combination nuts with toothed lock washer
These nuts also ensure high strength and a secure contacting connection thanks to their captive, rotatable washers with toothing. However, unlike spring-loaded toothed lock washers, they do not generate spring forces.
The shape of our combination nuts with toothed lock washers corresponds to DIN 934. The following variants are available from stock:
- Material: galvanized steel 8.8
- Thread: M3 to M6, M8, M10, 4-40
- Width across flats: 5.5, 7, 8, 10, 13, 6.35
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
