Self-Sealing Pan Head Screws
001.57.359
Available immediately
| Unit price | Quantity |
|---|---|
|
€52.20*
/
100
PCS
|
from 100 |
Available immediately
001.59.429
Available immediately
| Unit price | Quantity |
|---|---|
|
€40.40*
/
100
PCS
|
from 100 |
Available immediately
001.57.329
Available immediately
| Unit price | Quantity |
|---|---|
|
€51.70*
/
100
PCS
|
from 100 |
Available immediately
001.57.339
Available immediately
| Unit price | Quantity |
|---|---|
|
€51.90*
/
100
PCS
|
from 100 |
Available immediately
001.59.359
Available immediately
| Unit price | Quantity |
|---|---|
|
€36.50*
/
100
PCS
|
from 100 |
Available immediately
001.59.539
Available immediately
| Unit price | Quantity |
|---|---|
|
€78.30*
/
100
PCS
|
from 100 |
Available immediately
001.57.209
Available immediately
| Unit price | Quantity |
|---|---|
|
€88.90*
/
100
PCS
|
from 100 |
Available immediately
001.59.459
Available immediately
| Unit price | Quantity |
|---|---|
|
€45.40*
/
100
PCS
|
from 100 |
Available immediately
001.59.329
Available immediately
| Unit price | Quantity |
|---|---|
|
€41.30*
/
100
PCS
|
from 100 |
Available immediately
001.57.439
Available immediately
| Unit price | Quantity |
|---|---|
|
€101.10*
/
100
PCS
|
from 100 |
Available immediately
001.57.459
Available immediately
| Unit price | Quantity |
|---|---|
|
€54.50*
/
100
PCS
|
from 100 |
Available immediately
001.59.659
Available immediately
| Unit price | Quantity |
|---|---|
|
€94.20*
/
100
PCS
|
from 100 |
Available immediately
001.57.349
Available immediately
| Unit price | Quantity |
|---|---|
|
€104.10*
/
100
PCS
|
from 100 |
Available immediately
001.57.229
Available immediately
| Unit price | Quantity |
|---|---|
|
€74.30*
/
100
PCS
|
from 100 |
Available immediately
001.57.449
Available immediately
| Unit price | Quantity |
|---|---|
|
€101.30*
/
100
PCS
|
from 100 |
Available immediately
001.59.449
Available immediately
| Unit price | Quantity |
|---|---|
|
€73.00*
/
100
PCS
|
from 100 |
Available immediately
001.59.679
Available immediately
| Unit price | Quantity |
|---|---|
|
€81.20*
/
100
PCS
|
from 100 |
Available immediately
001.59.479
Available immediately
| Unit price | Quantity |
|---|---|
|
€43.70*
/
100
PCS
|
from 100 |
Available immediately
001.57.239
Available immediately
| Unit price | Quantity |
|---|---|
|
€66.10*
/
100
PCS
|
from 100 |
Available immediately
001.57.529
Available immediately
| Unit price | Quantity |
|---|---|
|
€103.50*
/
100
PCS
|
from 100 |
Available immediately
001.57.669
Available in 65 days
Available in 65 days
001.57.309
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€51.60*
/
100
PCS
|
from 100 |
Available in 20 days
001.57.389
Available in 20 days
Available in 20 days
001.57.369
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€66.00*
/
100
PCS
|
from 100 |
Available in 20 days

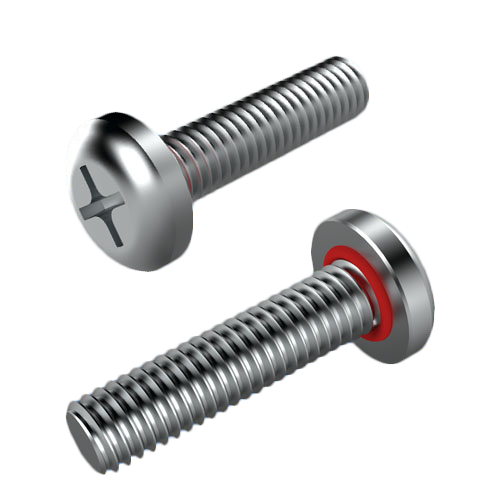

Self-sealing pan head screws are also referred to as "screws with rubber gaskets", "screws with sealing washers" or "screws with seals". A self-sealing pan head screw has a flat head and a rubber seal – in the form of a sealing washer under the screw head. These screws thus combine the traditional advantages of a flat head screw with those of a sealing element, such as a sealing nut.
Via this combination, pan head screws offer the advantage that they lie evenly on the workpiece due to their special design. This makes them not only particularly gentle on the underlying material and visually inconspicuous, but also ideal when it comes to minimizing damage as well as the risk of injury. Thanks to their integrated sealing washer, self-sealing pan head screws also prevent liquids or other undesirable substances from penetrating into machines and other devices or components.
- Self-sealing pan head screws
Self-sealing pan head screws with different drive types
The ETTINGER product range includes a large selection of self-sealing pan head screws with various drives, such as:
- Slotted self-sealing pan head screws
- Self-sealing pan head screws with cross slot/Phillips-H
- Self-sealing pan head screws with hexagon socket or Torx (available on request)
Patented self-sealing screws in the ETTINGER product range
To ensure that you can always find the right screw with washer and gasket – or any other type of screw – for your specific application, ETTINGER is continuously expanding its product range. When it comes to screws with sealing washers, ETTINGER offers the APM self-sealing screw as a patented single element. These screws include a SEELSKREW® seal and were designed with the goal of combining tightening and sealing in a single fastening element. This is achieved by means of an O-ring secured in a groove directly underneath the screw head.
On the one hand, this approach ensures a perfect seal. At the same time, the metal screw head comes into direct contact with the surface of the workpiece – for a seamless transition. The sealing ring consists of silicone rubber in accordance with ZZ-RR-765 Class I and II, Shore hardness 70. For even easier assembly, we offer flat head screws and other screws with sealing washers in our product range, including variants with a fused-on polyamide sealing ring as custom products.
Pan head screws to ISO and DIN standards
Increasingly, the common DIN standard published by the German Institute for Standardization is being replaced by the international ISO standard. Screws with a rubber gasket are often listed under both their DIN standard and the corresponding ISO standard. Our broad product range includes:
- Stainless steel self-sealing pan head screws, similar to DIN 7985 / ISO 7045 (with SEELSKREW® silicone seal).
- Stainless steel self-sealing pan head screws, similar to DIN 85 / ISO 1580 (with SEELSKREW® silicone seal).
- Self-sealing pan head screws with cross slot to DIN 7985 and ISO 7045
- Slotted self-sealing pan head screws to DIN 85 and ISO 1580
A particular advantage of stainless steel screws with sealing washers is that they are rustproof and therefore also corrosion-resistant. In combination with the seal, a stainless steel pan head screw is therefore an extremely durable fastening element.
Self-sealing pan head screws with different thread sizes
Self-sealing pan head screws with the following thread sizes are frequently purchased by our B2B wholesale customers from various industries:
- Self-sealing pan head screw M2
- Self-sealing pan head screw M3
- Self-sealing pan head screw M4
- Self-sealing pan head screw M5
- Self-sealing pan head screw M6
Can't find the right self-sealing screws for your project? Then please ask us, we're always happy to help!
