Hexagon Serrated Flange Nuts
002.09.323
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.75*
/
100
PCS
|
from 100 |
Available immediately
002.09.313
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.45*
/
100
PCS
|
from 100 |
Available immediately
002.09.314
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.20*
/
100
PCS
|
from 100 |
Available immediately
002.09.324
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.00*
/
100
PCS
|
from 100 |
Available immediately
002.09.325
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.10*
/
100
PCS
|
from 100 |
Available immediately
002.09.318
Available immediately
| Unit price | Quantity |
|---|---|
|
€14.40*
/
100
PCS
|
from 100 |
Available immediately
002.09.335
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.70*
/
100
PCS
|
from 100 |
Available immediately
002.09.316
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.50*
/
100
PCS
|
from 100 |
Available immediately
002.09.326
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.45*
/
100
PCS
|
from 100 |
Available immediately
002.09.336
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.40*
/
100
PCS
|
from 100 |
Available immediately
002.09.328
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.35*
/
100
PCS
|
from 100 |
Available immediately
002.09.315
Available immediately
| Unit price | Quantity |
|---|---|
|
€40.00*
/
100
PCS
|
from 100 |
Available immediately
002.09.329
Available immediately
| Unit price | Quantity |
|---|---|
|
€13.50*
/
100
PCS
|
from 100 |
Available immediately

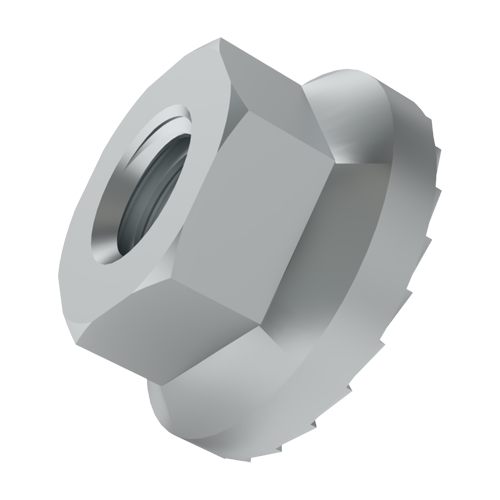

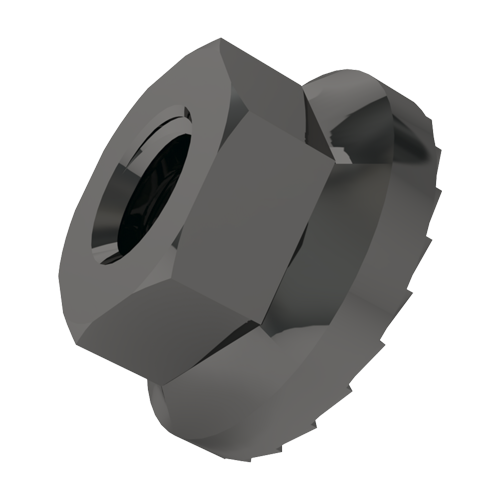

Hexagon serrated flange nuts are a type of combination and lock nut. These hexagon nuts feature a flange with teeth that embed into the opposing material when the nut is tightened. The serrated design increases friction, creating a stable mechanical lock that prevents accidental loosening due to vibrations or dynamic loads.
Another benefit of hexagon serrated flange nuts is their ability to create a form fit with soft materials, ensuring a reliable ground contact. The all-metal versions are also suitable for high-temperature applications.
Thanks to their strong locking capability, hexagon serrated flange nuts typically do not require additional locking elements like spring washers or thread-locking adhesives, reducing the maintenance requirements for screw connections.
Hexagon serrated flange nuts can be used for the following applications, among others:
- In the electrical engineering and electronics industry, these fasteners ensure stable ground contact in control cabinets and electrical installations.
- In mechanical engineering, these nuts are used in systems and machines subjected to vibrations and heavy loads.
- The automotive industry uses hexagon serrated flange nuts as fasteners for body parts, chassis components, and engine parts.
- In the aerospace industry, they are used to secure structural components, ensuring high stability under extreme conditions.
Browse our wide range of other products: Whether you need nuts with standard or fine threads, blind rivet nuts, cage nuts or expanding nuts, we have the right product for every requirement!
DIN 6923 hexagon serrated flange nuts – for secure ground contact
In the ETTINGER B2B online store, you can conveniently purchase hexagon serrated flange nuts similar to DIN 6923 / ISO 4161. These nuts conform to the standard except for the serration on the flange. The specifications are as follows:
- Material: steel 8.8 galvanized or black; A2 stainless steel
- Thread: M3, M4, M5, M6, M8, M10
- Width across flats: 5.5, 7, 8, 10, 13, 15
In our store and catalog, you will also find lock nuts with Poly-Stop to DIN 985 and flange lock nuts with polyamide insert to DIN 6926.
Benefit from our short delivery times and outstanding quality: Order hexagon serrated flange nuts or other locking elements in the right size from ETTINGER!
