Hexagon Nuts with Sealing Ring
002.07.149
Available immediately
| Unit price | Quantity |
|---|---|
|
€3,270.00*
/
500
PCS
|
from 100 |
Available immediately
002.07.150
Available in 40 days
| Unit price | Quantity |
|---|---|
|
€588.40*
/
100
PCS
|
from 100 |
Available in 40 days
002.07.131
Available in 75 days
| Unit price | Quantity |
|---|---|
|
€9,133.50*
/
1500
PCS
|
from 100 |
Available in 75 days

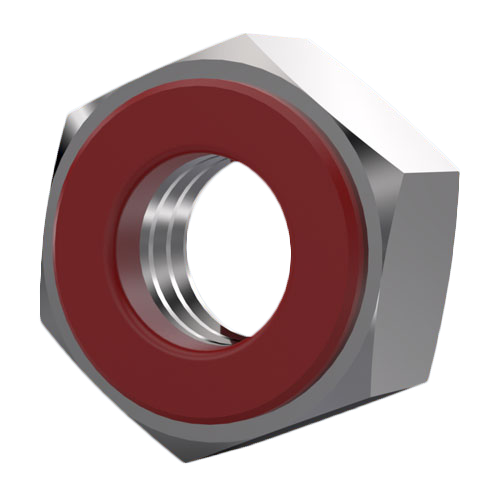

Hexagon nuts with sealing rings
Hexagon nuts with sealing rings are used to reliably prevent accidental loosening of screw connections. These self-locking nuts include a non-metallic insert that does not damage the thread surfaces. The plastic sealing ring, which is located on the face of the lock nuts, deforms when the screw is tightened and locks into the screw thread. This results in a force-fit connection that maintains a consistent preload.
Nuts with sealing rings fulfill their function across numerous industrial sectors. In the electrical and electronics industry, for example, they are used to ensure that components remain securely fastened. In the automotive, aerospace and mechanical engineering industries, they ensure resilient connections in environments exposed to vibrations and high loads.
The silicone ring on the underside also prevents the ingress of liquids, gases, or other contaminants into the threaded connection.
In the ETTINGER B2B online store, you will find sealing nuts with standard and UNC threads in the required size. We can supply your company fast – even with large quantities.
Self-locking nuts with sealing ring to DIN 985 / ISO 10511
Our hexagon nut with Poly-Stop to DIN 985 or ISO 10511 is a traditional version with a blue, ring-shaped polyamide insert. The insert is destroyed when the screw connection is tightened, which means the nut cannot be reused.
You will find these nuts in both low- and high-profile designs in our standard range with the following specifications:
- Material: galvanized steel, A2 or A4 stainless steel
- Thread: M2, M2.5, M3 to M6, M8, M10, M12, M16, UNC 4/40
- Width across flats: 4.5 to 24 mm, 1/4 inch
- Height: 4 to 6, 8, 10, 12, 16 mm and 3.8 mm (UNC)
We also stock self-locking hexagon nuts with a smooth flange and polyamide insert to DIN 6926 / ISO 7043, as well as toothed lock nuts to DIN 6923 / ISO 1661.
Custom Manufacturing
Do you have specific requirements for hexagon nuts with sealing rings or do you need different dimensions? We also offer custom manufacturing in accordance with your specifications. Simply contact us!
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
