Lock Nuts
002.08.103
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.70*
/
100
PCS
|
from 100 |
Available immediately
002.08.503
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.15*
/
100
PCS
|
from 100 |
Available immediately
002.08.104
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.50*
/
100
PCS
|
from 100 |
Available immediately
002.08.102
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.40*
/
100
PCS
|
from 100 |
Available immediately
002.08.504
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.70*
/
100
PCS
|
from 100 |
Available immediately
002.08.505
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.90*
/
100
PCS
|
from 100 |
Available immediately
002.08.502
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.45*
/
100
PCS
|
from 100 |
Available immediately
002.08.106
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.85*
/
100
PCS
|
from 100 |
Available immediately
002.08.941
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.60*
/
100
PCS
|
from 100 |
Available immediately
002.08.903
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.75*
/
100
PCS
|
from 100 |
Available immediately
002.08.101
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.40*
/
100
PCS
|
from 100 |
Available immediately
002.08.105
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.40*
/
100
PCS
|
from 100 |
Available immediately
002.08.441
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.60*
/
100
PCS
|
from 100 |
Available immediately
002.09.444
Available immediately
| Unit price | Quantity |
|---|---|
|
€19.80*
/
100
PCS
|
from 100 |
Available immediately
002.09.405
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.05*
/
100
PCS
|
from 100 |
Available immediately
002.08.506
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.75*
/
100
PCS
|
from 100 |
Available immediately
002.08.904
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.75*
/
100
PCS
|
from 100 |
Available immediately
002.09.424
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.50*
/
100
PCS
|
from 100 |
Available immediately
002.09.446
Available immediately
| Unit price | Quantity |
|---|---|
|
€30.50*
/
100
PCS
|
from 100 |
Available immediately
002.08.108
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.20*
/
100
PCS
|
from 100 |
Available immediately
002.08.110
Available immediately
| Unit price | Quantity |
|---|---|
|
€13.50*
/
100
PCS
|
from 100 |
Available immediately
002.09.448
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.80*
/
100
PCS
|
from 100 |
Available immediately
002.05.366
Available immediately
| Unit price | Quantity |
|---|---|
|
€244.00*
/
1000
PCS
|
from 100 |
Available immediately
002.05.356
Available immediately
| Unit price | Quantity |
|---|---|
|
€48.00*
/
100
PCS
|
from 100 |
Available immediately

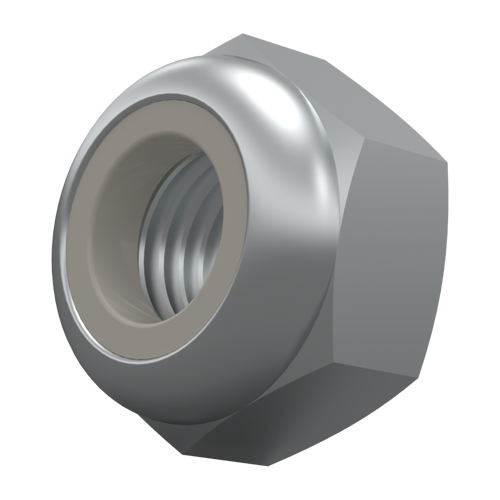

Whenever a firm hold is required for screwed connections on components, lock nuts are the answer. These hexagon nuts are self-locking, which means no additional fastening element is required to prevent the nut from loosening. For this purpose, the stop nuts are equipped with a plastic ring on one end face.
When the screw is screwed in, the ring, also known as the clamping part, deforms and is clamped to the screw thread: This results in friction locking, which ensures that the preload force is maintained. This ensures the screw connection remains intact even under demanding conditions.
Lock nuts with a plastic clamping part cannot be reused after loosening, as the ring is destroyed. However, there are also all-metal nuts with a clamping part made of steel. These hexagonal nuts are designed for high loads and are generally reusable.
In the ETTINGER B2B online store, you will find lock nuts with Poly-Stop, as well as flange lock nuts. Buy the sizes you need and benefit from our excellent quality and fast delivery times.

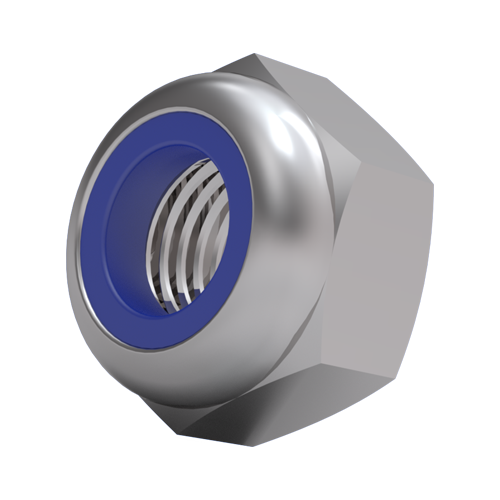

Poly-Stop lock nuts to DIN 985
These classic lock nuts comply with DIN 985 / ISO 10511 and are available with a metric or UNC thread. The blue insert is located on a ring-shaped extension at the top of the nut and presses against the screw threads when tightened. This frictional locking mechanism prevents loosening due to dynamic loads and vibrations. The non-metallic clamping part is made from polyamide and does not damage the thread surfaces.
Choose from the following versions:
- Material: galvanized steel, A2 or A4 stainless steel
- Thread: M2, M2.5, M3 to M6, M8, M10, M12, M16, UNC 4/40
- Dimensions: SW 4.5 to 24 mm, 1/4 inch

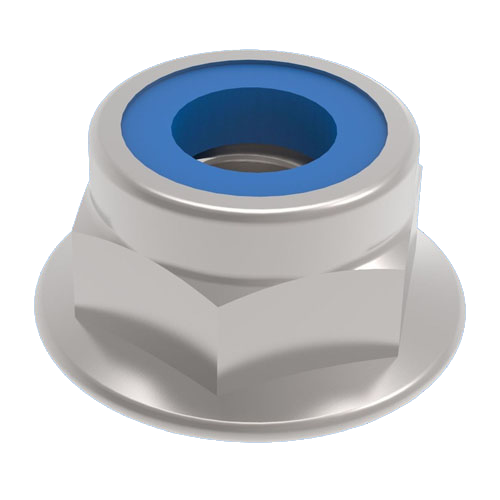

Lock nuts with flange and polyamide insert
These self-locking hexagon nuts with a non-metallic insert comply with DIN 6926 / ISO 7043 and are available in 8.8 galvanized steel or A2 and A4 stainless steel. The smooth flange without toothing increases the bearing surface without damaging soft materials. This has the following advantages:
- more even load distribution
- more stable connection
- protection for the materials
- simplified assembly with no additional washer required
You can buy these nuts with the following specifications:
- Thread: M4 to M6, M8, M10
- Width across flats: 7 mm, 8 mm, 10 mm, 13 mm and 15 mm
Our catalog also includes hexagon serrated flange nuts to DIN 6923 / ISO 1661 made from galvanized or black steel, or A2 stainless steel. These nuts have toothing on the flange that ensures they are less likely to work themselves loose.
