Pin-Type Cable Lugs
018.50.004
Available immediately
| Unit price | Quantity |
|---|---|
|
€22.30*
/
100
PCS
|
from 100 |
Available immediately
018.51.722
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.90*
/
100
PCS
|
from 100 |
Available immediately
018.58.275
Available immediately
| Unit price | Quantity |
|---|---|
|
€15.40*
/
100
PCS
|
from 100 |
Available immediately
018.54.736
Available immediately
| Unit price | Quantity |
|---|---|
|
€51.80*
/
100
PCS
|
from 100 |
Available immediately
018.52.112
Available immediately
| Unit price | Quantity |
|---|---|
|
€23.60*
/
100
PCS
|
from 100 |
Available immediately
018.58.125
Available immediately
| Unit price | Quantity |
|---|---|
|
€18.20*
/
100
PCS
|
from 100 |
Available immediately
018.53.216
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.70*
/
100
PCS
|
from 100 |
Available immediately
018.55.764
Available immediately
| Unit price | Quantity |
|---|---|
|
€26.30*
/
100
PCS
|
from 100 |
Available immediately
018.58.045
Available in 40 days
Available in 40 days
018.54.616
Available in 20 days
Available in 20 days
018.58.725
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€35.00*
/
100
PCS
|
from 10 |
Available in 20 days
018.54.414
Available in 20 days
Available in 20 days
018.51.622
Available in 20 days
Available in 20 days
018.58.425
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€15.00*
/
50
PCS
|
from 50 |
Available in 20 days
Pin-type cable lugs from ETTINGER
Fine stranded wires are inserted into the hollow end of pin-type cable lugs. The crimp sleeve is then deformed using suitable crimping pliers or a crimping machine, creating a permanent form closure. The insulation protects the connection against environmental influences and provides kink protection. For solderless electrical contacting, the pin is simply plugged into a socket or connected to other contacts. Insulated pin-type cable lugs are frequently used as efficient connection technology in the field of electrical engineering and in the automotive industry. ETTINGER offers pin-type cable lugs with cross-section-dependent insulation (colour coding) as well as pin-type cable lugs without insulation.
Pin-type cable lugs for diverse conductor cross-sections
All our cable lugs are made of electrolytic tin-plated copper and comply with DIN 46231. There is a choice of two insulation materials: polyvinyl chloride (PVC) and polyamide (PA). The temperature resistance is -55°C to +125°C for polyamide and -10°C to +75°C for PVC. Most of our pin-type cable lugs feature a flared insulating sleeve (easy-entry function), which makes inserting the stranded wire particularly easy. The wire size can be identified by the colour scheme for efficient cable management in manufacturing and fabrication:

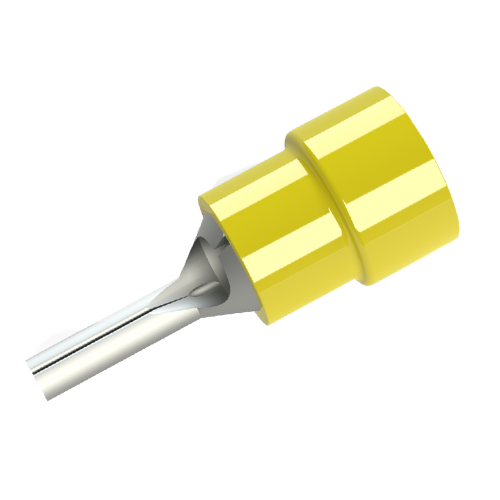

- Yellow for a conductor cross-section of 0.1 mm2 to 0.5 mm2

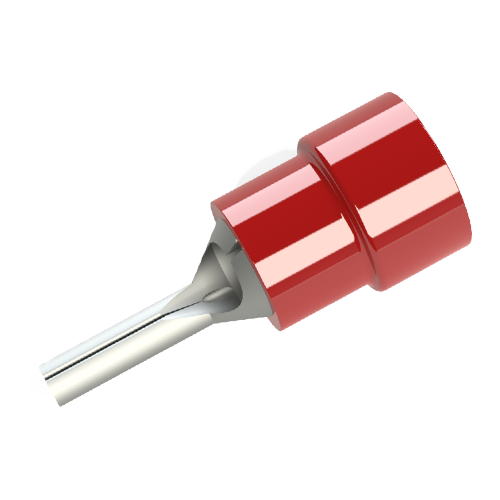

- Red for a conductor cross-section of 0.5 mm2 to 1.0 mm2

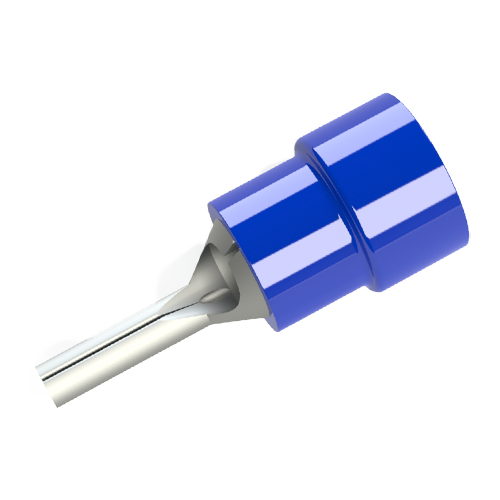

- Blue for a conductor cross-section of 1.5 mm2 to 2.5 mm2
- Yellow for a conductor cross-section of 4 mm2 to 6 mm2

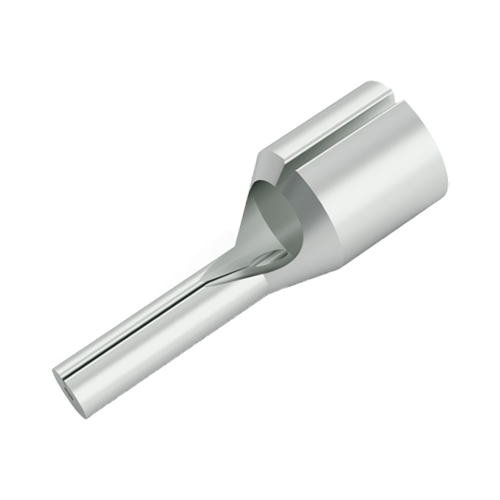

Uninsulated pin-type cable lugs are available with a cross-section of 0.1 – 0.5 mm² to 16 mm2.
Order easily online with fast delivery
Whether for plugging, soldering, screwing, pressing or crimping: ETTINGER's wide range of products always includes the right cable lugs for your requirements. Order conveniently online – many products are available immediately. We also deliver large quantities as a matter of course. Also, please don't hesitate to contact us if you need insulated or uninsulated pin-type cable lugs in custom sizes and dimensions for your project. We can give you comprehensive advice thanks to our decades of experience with custom-made products and special procurements. Contact us for a one-to-one chat!
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
