Cable Lugs
018.34.646
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.60*
/
100
PCS
|
from 100 |
Available immediately
018.35.744
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.40*
/
100
PCS
|
from 100 |
Available immediately
018.66.465
Available immediately
| Unit price | Quantity |
|---|---|
|
€36.30*
/
100
PCS
|
from 100 |
Available immediately
018.65.465
Available immediately
| Unit price | Quantity |
|---|---|
|
€26.30*
/
100
PCS
|
from 100 |
Available immediately
018.64.465
Available immediately
| Unit price | Quantity |
|---|---|
|
€19.20*
/
100
PCS
|
from 100 |
Available immediately
018.64.435
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.40*
/
100
PCS
|
from 100 |
Available immediately
018.39.544
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.40*
/
100
PCS
|
from 100 |
Available immediately
018.39.546
Available immediately
| Unit price | Quantity |
|---|---|
|
€19.00*
/
100
PCS
|
from 100 |
Available immediately
018.60.435
Available immediately
| Unit price | Quantity |
|---|---|
|
€13.90*
/
100
PCS
|
from 100 |
Available immediately
018.64.645
Available immediately
| Unit price | Quantity |
|---|---|
|
€21.50*
/
100
PCS
|
from 100 |
Available immediately
018.05.145
Available immediately
| Unit price | Quantity |
|---|---|
|
€17.90*
/
100
PCS
|
from 100 |
Available immediately
018.60.425
Available immediately
| Unit price | Quantity |
|---|---|
|
€18.50*
/
100
PCS
|
from 100 |
Available immediately
018.60.415
Available immediately
| Unit price | Quantity |
|---|---|
|
€15.90*
/
100
PCS
|
from 100 |
Available immediately
018.35.784
Available immediately
| Unit price | Quantity |
|---|---|
|
€32.20*
/
100
PCS
|
from 100 |
Available immediately
018.61.435
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.80*
/
100
PCS
|
from 100 |
Available immediately
018.31.542
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.20*
/
100
PCS
|
from 100 |
Available immediately
018.31.532
Available immediately
| Unit price | Quantity |
|---|---|
|
€15.80*
/
100
PCS
|
from 100 |
Available immediately
018.61.645
Available immediately
| Unit price | Quantity |
|---|---|
|
€20.90*
/
100
PCS
|
from 100 |
Available immediately
018.05.265
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.90*
/
100
PCS
|
from 100 |
Available immediately
018.30.434
Available immediately
| Unit price | Quantity |
|---|---|
|
€26.20*
/
100
PCS
|
from 100 |
Available immediately
018.50.004
Available immediately
| Unit price | Quantity |
|---|---|
|
€22.30*
/
100
PCS
|
from 100 |
Available immediately
018.34.546
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.90*
/
100
PCS
|
from 100 |
Available immediately
018.65.445
Available immediately
| Unit price | Quantity |
|---|---|
|
€25.30*
/
100
PCS
|
from 100 |
Available immediately
018.05.245
Available immediately
| Unit price | Quantity |
|---|---|
|
€23.00*
/
100
PCS
|
from 100 |
Available immediately
Cable lugs from ETTINGER
In electrical engineering, cable lugs offer an easy way to create electrical connections for cables and stranded wires by means of screws (ring or fork cable lugs) or connectors (blade terminals or blade receptacles). The contact is established by screwing on the ring or fork (in the metric dimensions from M2 to M10). If you want to fasten stranded wires in terminals, it is best to insert ferrules – this prevents the individual wires from splicing. Cable lugs (and solder cable lugs) in various designs – with or without insulation or as pin-type cable lugs – are available online from ETTINGER in large quantities.
Crimping, pressing, plugging – cable lugs in numerous designs
In our online shop you will find cable lugs in numerous variants and different sizes. The available cable lug types in our range can be distinguished as follows.

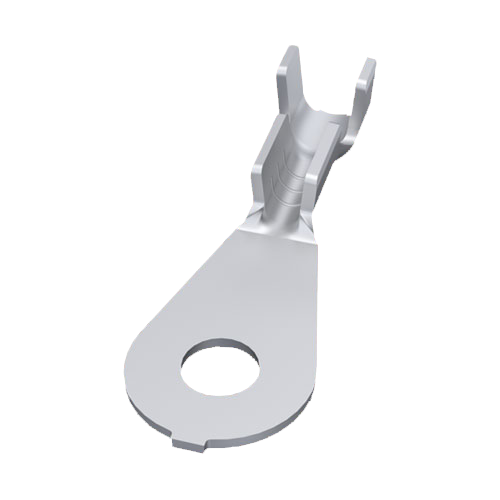

Crimp cable lugs: These include a pre-formed conductor holder for the individual wires of the cable, which is bent upwards at the side. In the crimping process, crimping tools are used to press this conductor receptacle inwards and downwards – these cable lugs are thus easily mounted and create an electrically conductive contact with the conductor. Blade terminals are connected in a similar manner.
Compression cable lugs: Compression cable lugs have a thicker and closed holder for the conductor. This is deformed with the aid of a crimping tool to create a strong form closure around the conductor.

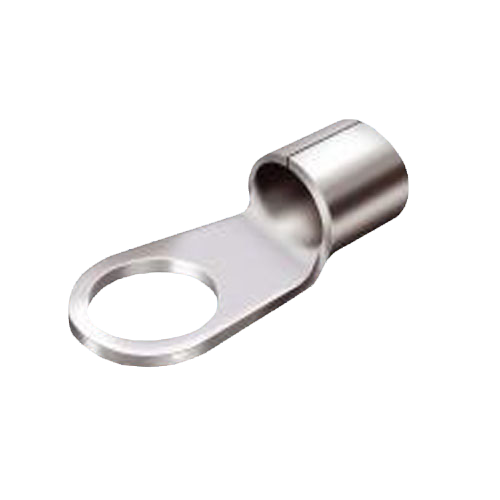

Ring cable lugs: We offer these as a solder-free variant made of galvanically tin-plated electrolytic copper for crimping or pressing in accordance with DIN 46234 A (without insulation) or DIN 46237 A (with insulation). They have a temperature resistance of -40°C to +105°C.

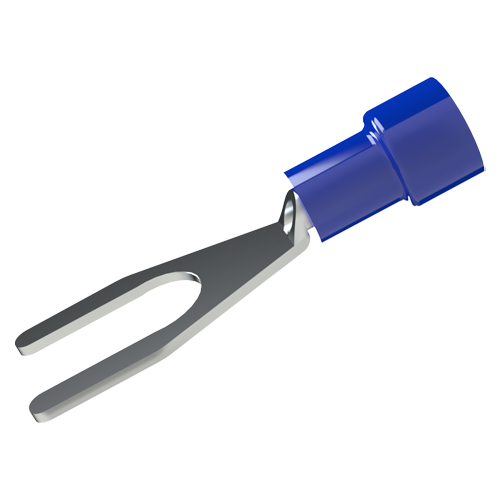

Forked cable lugs: Our range includes solderless forked cable lugs for crimping or pressing in accordance with DIN 46237 C, e.g., with polyamide insulation and made of galvanically tin-plated electrolytic copper. They have a temperature resistance of -55°C to +105°C.
Claw cable lugs made of tin-plated brass to DIN 46225 are also available.

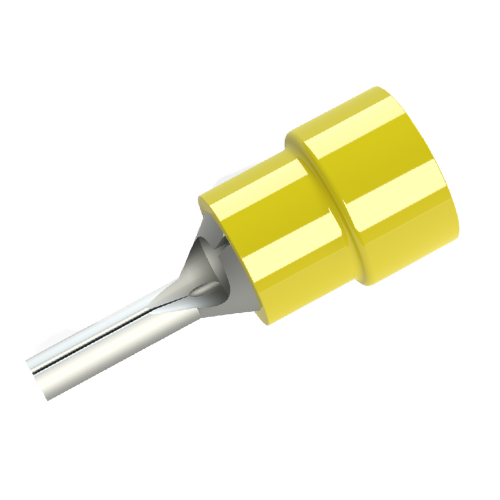

Pin-type cable lugs: These cable lugs are available either with or without insulation (polyamide and PVC) and in accordance with the DIN 46230 and DIN 46231 standards in forms A and B.
Whether as ring, fork or pin-type cable lugs: At ETTINGER you have the choice between insulated cable lugs and cable lugs without insulation – in the most common sizes and dimensions – usually ex stock! Browse our wide range of products. If you require custom-made products, please contact us for a comprehensive one-to-one consultation. (Contact)
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
