Conical Spring Washer DIN6796/ISO10670 Ø2.7/6.0 x 0.5 Phosphated Spring Steel

Article-No.: 003.24.821

Illustration may be similar

Minimum purchase 200 PCS Purchase Unit 200 PCS

Available in 15 days

Available now No

Material Group Steel

Material Spring Steel

Finish Phosphated

DIN/ISO DIN6796 / ISO10670

For Thread Size M2.5

Inner Diameter [mm] 2.7

Outer Diameter [mm] 6

Height [mm] 0.5

Select properties above to find similar products:

Conformities Downloads

€11.60 200 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Product image (PNG) 56.8 KB

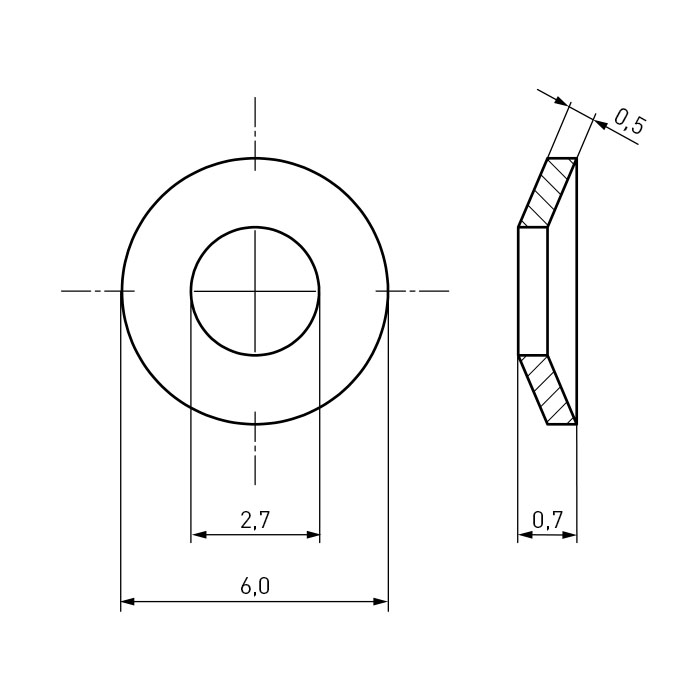

Technische Zeichnung (JPG) 57.1 KB
