Discrete Component Mount Polyamid 111 natural UL94-V2

Article-No.: 070.31.211

Manufacturer article-no.:331-200 BIVAR

Illustration may be similar

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material Group Die Cast Zinc

Material Polyamide 6.6

Flammability Class UL94-V2

Color White

Inner Diameter [mm] 0.9

Outer Diameter [mm] 1.5

Length [mm] 7.5

Model Capacitor Mount

Select properties above to find similar products:

Conformities Downloads

€15.40 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

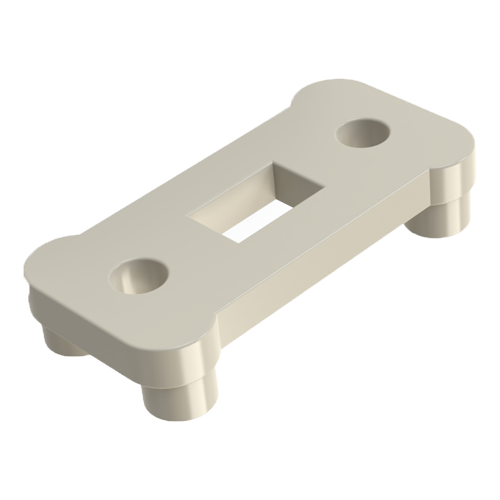

Product image (PNG) 77.4 KB

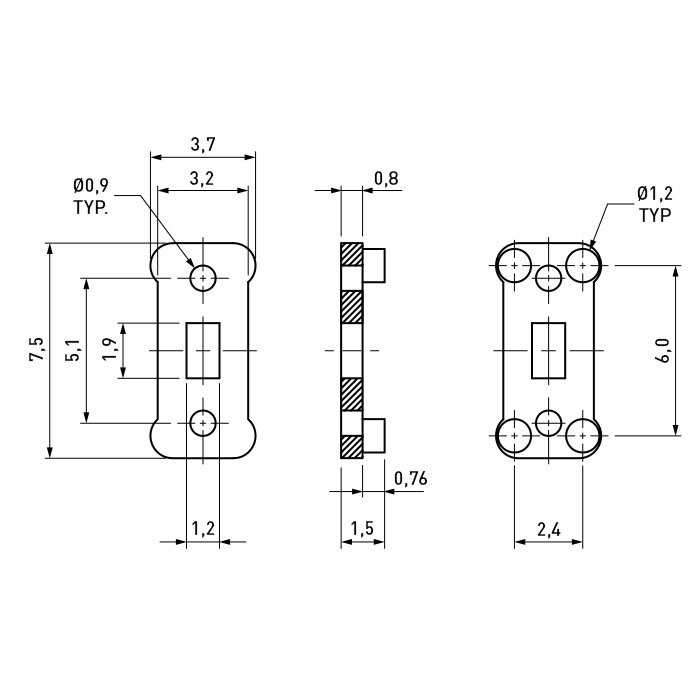

Technische Zeichnung (JPG) 68.1 KB
