PCB Support 15.5 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.17.715

Illustration may be similar

Minimum purchase 500 PCS Purchase Unit 500 PCS

Available in 40 days

Available now No

Material PA 6.6 UL94 V-2 E 70062 / RMS01

Flammability Class UL94-V2

Color Natural

PCB Thickness [mm] 1,6

Panel Hole Ø [mm] 4.8

Panel Thickness [mm] 1,0-2,3

Length [mm] 15.5

Select properties above to find similar products:

Conformities Downloads

€270.00 500 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Product image (PNG) 81.6 KB

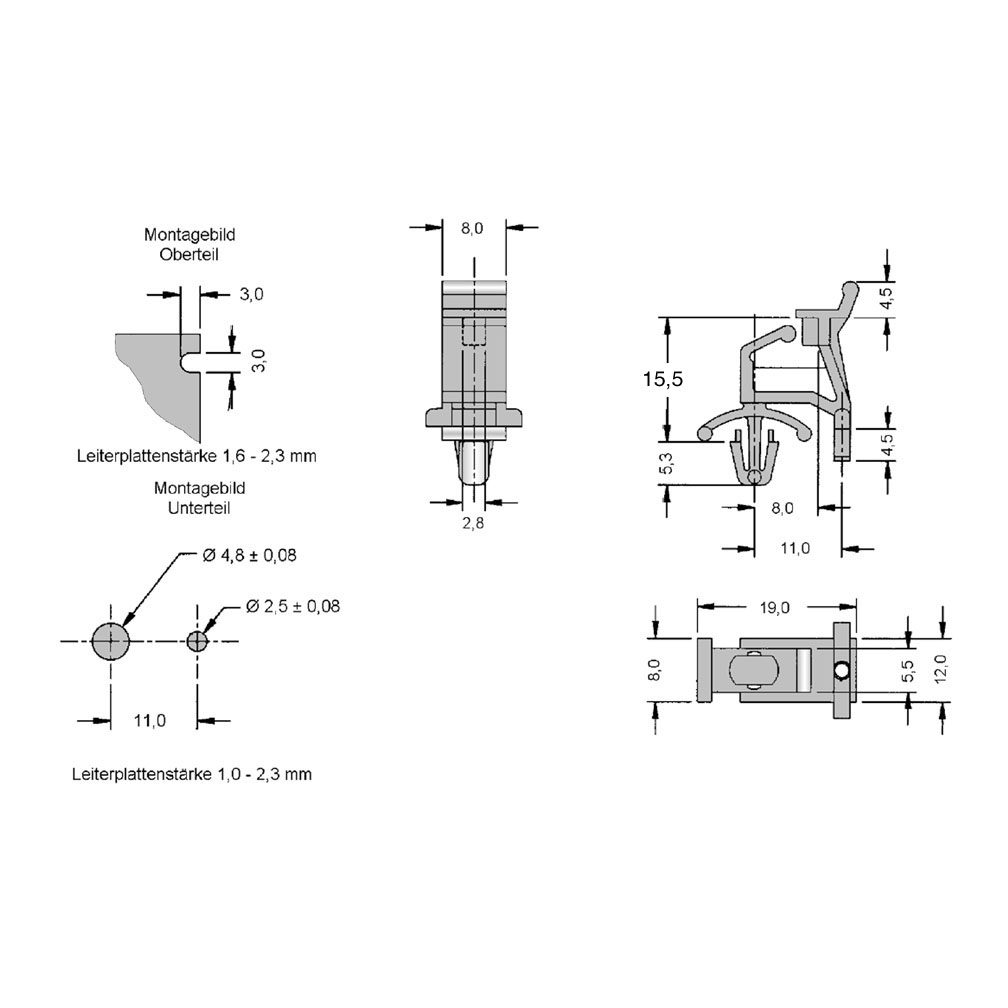

Technische Zeichnung (JPG) 74.6 KB
