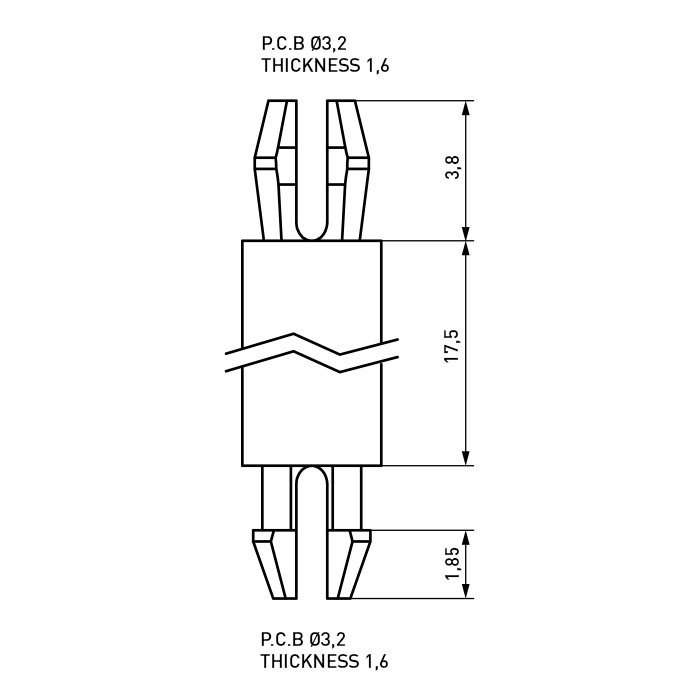

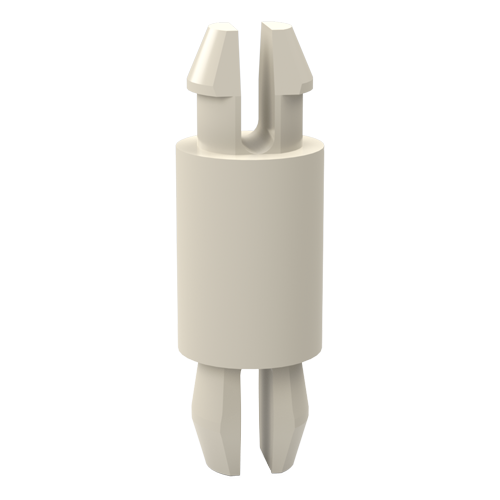

PCB Support 17.5 | ø3.2 | ø3.2 Polyamide 6.6 natural

Article-No.: 006.30.176

Illustration may be similar

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material Polyamide 6.0 25% GF

Flammability Class UL94-V2

Color Natural

PCB Hole Ø [mm] 3.2

PCB Thickness [mm] 1,6

Panel Hole Ø [mm] 3.2

Panel Thickness [mm] 1,6

Length [mm] 17.5

Select properties above to find similar products:

Conformities Downloads

€16.70 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Product image (PNG) 61 KB
