PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Article-No.: 006.38.216

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Illustration may be similar

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material PA 6.6

Flammability Class UL94-V2

Color Natural

PCB Hole Ø [mm] 4

PCB Thickness [mm] 1,6

Panel Hole Ø [mm] 4.8

Panel Thickness [mm] 0,8-2,0

Length [mm] 4.8

Select properties above to find similar products:

Find products with similar properties

Conformities Downloads

€16.60 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006

Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III

SVHC List: Substances of Very High Concern (242)

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Show in catalogue

Downloads

PDF-Datasheet

Article datasheet (pdf)

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

Product image (PNG) 56.7 KB

PCB Support 4.8 | ø4.0 | ø4.8 Polyamide 6.6 natural

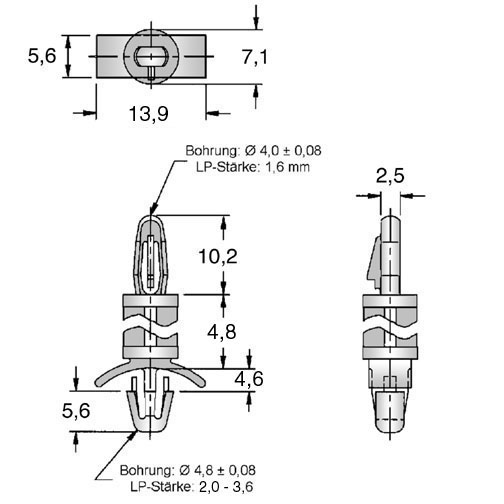

Technische Zeichnung (JPG) 54.6 KB
