Press Nut M10 | SW15x8.0 Galvanized Steel

Article-No.: 002.14.191

Press Nut M10 | SW15x8.0 Galvanized Steel

Press Nut M10 | SW15x8.0 Galvanized Steel

Illustration may be similar

Press Nut M10 | SW15x8.0 Galvanized Steel

Press Nut M10 | SW15x8.0 Galvanized Steel

Minimum purchase 5000 PCS Purchase Unit 100 PCS

Available in 25 days

Available now No

Material Group Steel

Material Steel

Finish Galvanized, Blue, 5 µm, A2K

Panel Hole Ø [mm] 12.5

Panel Thickness [mm] 2

Thread Size M10

Height [mm] 8

AF / OD [mm] 15

Select properties above to find similar products:

Find products with similar properties

Conformities Downloads

€21.10 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006

Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III

SVHC List: Substances of Very High Concern (242)

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Show in catalogue

Downloads

PDF-Datasheet

Article datasheet (pdf)

Press Nut M10 | SW15x8.0 Galvanized Steel

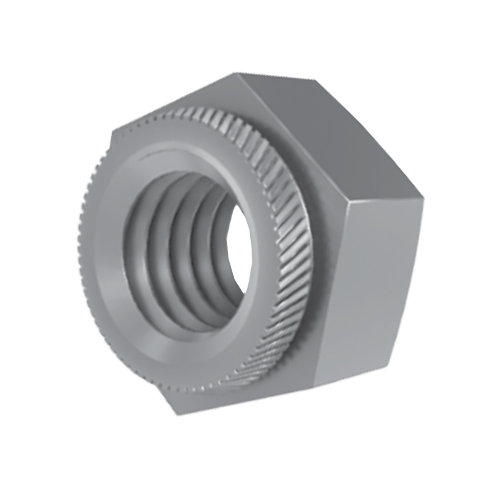

Product image (PNG) 130.4 KB

Press Nut M10 | SW15x8.0 Galvanized Steel

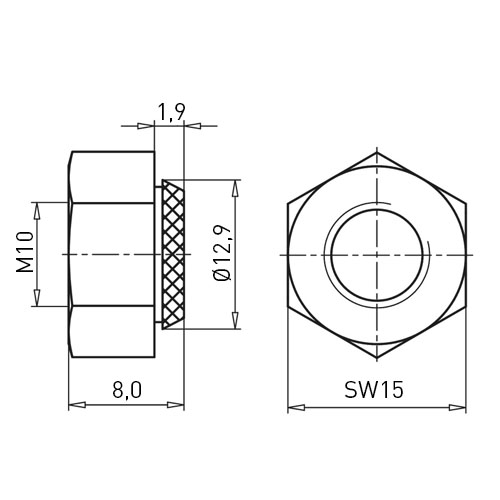

Technische Zeichnung (JPG) 49.8 KB
