Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Article-No.: 019.05.439

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Illustration may be similar

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material Group Brass

Material Brass CW508L / CuZn37, lead-free

Finish Silver-Plated

DIN/ISO DIN46215

Outer Diameter [mm] 6

Length [mm] 10

Inner Diameter [mm] 3.2

Select properties above to find similar products:

Find products with similar properties

Conformities Downloads

€23.00 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006

Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III

SVHC List: Substances of Very High Concern (242)

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Show in catalogue

Downloads

PDF-Datasheet

Article datasheet (pdf)

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

Product image (PNG) 58.4 KB

Solder Eyelet DIN46215-3 ø3.2 6.0mm Brass silver-plated 0.5mm thick

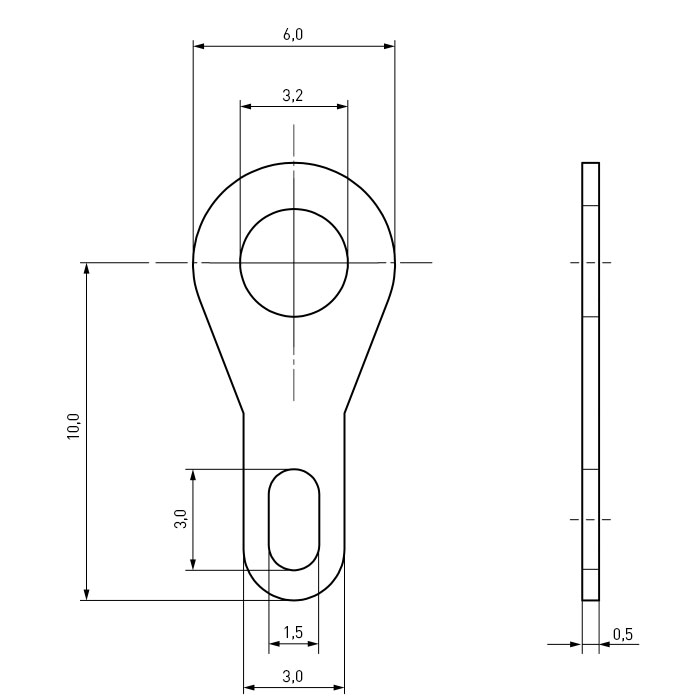

Technische Zeichnung (JPG) 56.6 KB
