Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

Article-No.: 072.77.296

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

Illustration may be similar

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Bundle Diameter [mm] 10,0-18,0

Available now Yes

Material PA 6.6

Color Natural

Mounting Hole [mm] 4.8

Panel Thickness [mm] Rasthebel

Height [mm] 15.8

Width [mm] 22.4

Model Folding

Select properties above to find similar products:

Find products with similar properties

Conformities Downloads

€16.80 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006

Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III

SVHC List: Substances of Very High Concern (242)

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (242)

Downloads

PDF-Datasheet

Article datasheet (pdf)

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

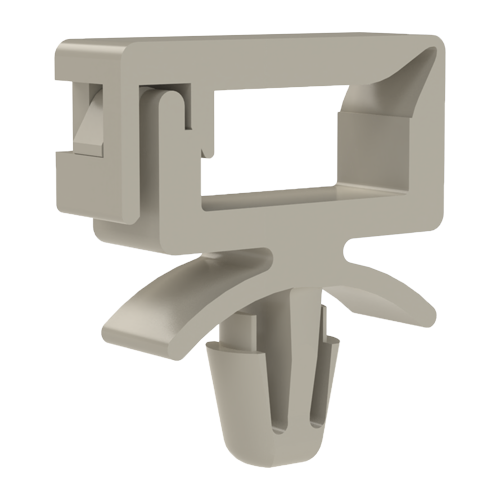

Product image (PNG) 111.2 KB

Wire Saddle Locking Top 16.3x10.0mm Polyamid 6.6 natural UL94-V0 E70062

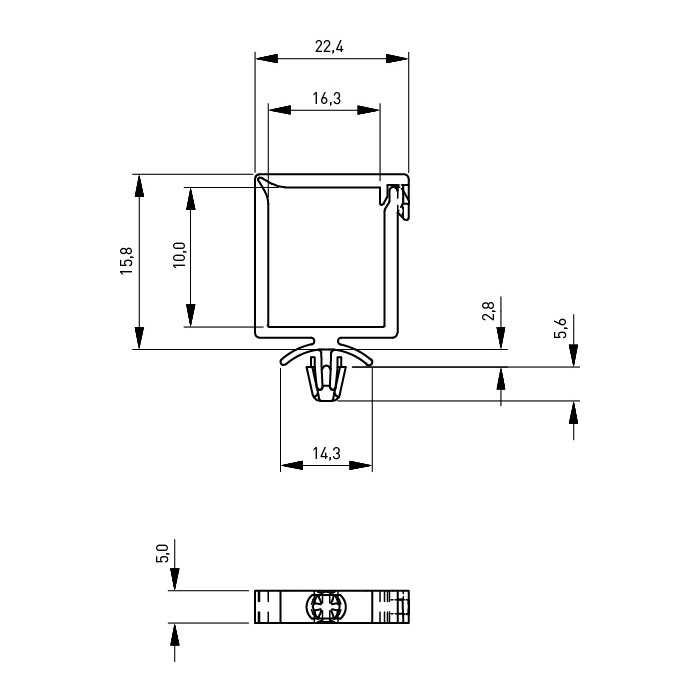

Technische Zeichnung (JPG) 48.7 KB
