Ground Terminal ø5,3/ø9,5x13,5mm Brass nickel-plated 0.5mm thick

Article-No.: 019.07.053

Illustration may be similar

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material Group Brass

Material Brass CW508L / CuZn37, lead-free

Finish Nickel-Plated, 3 µm, E1E

Outer Diameter [mm] 9.5

Length [mm] 13.5

Inner Diameter [mm] 5.3

Select properties above to find similar products:

Conformities Downloads

€19.80 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (247)

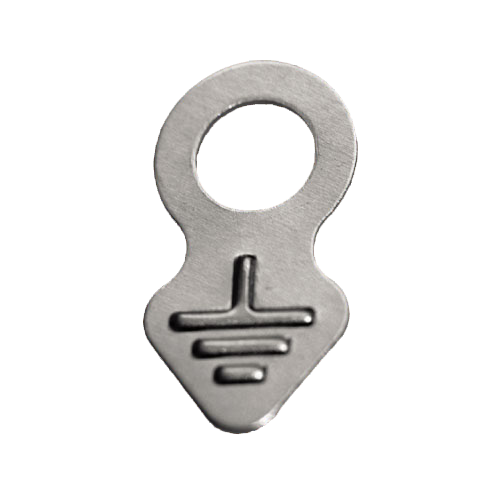

Product image (PNG) 76.5 KB

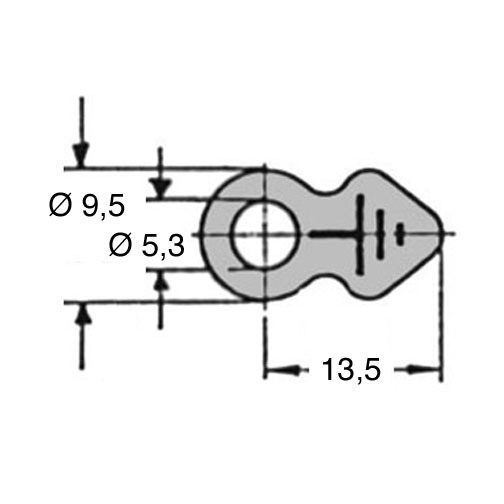

Technische Zeichnung (JPG) 32.1 KB
